PortalWall® SEA™ Spanning Enabling Assemblies™

How the SEA™ Came to Be

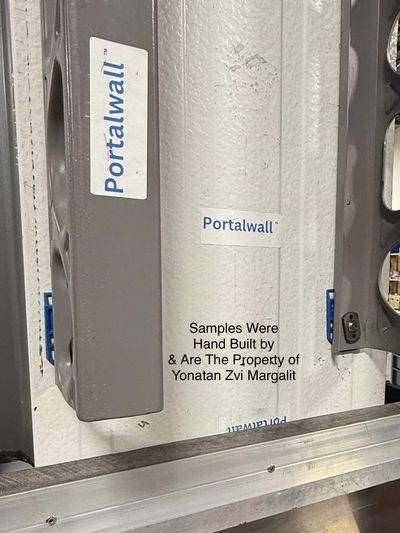

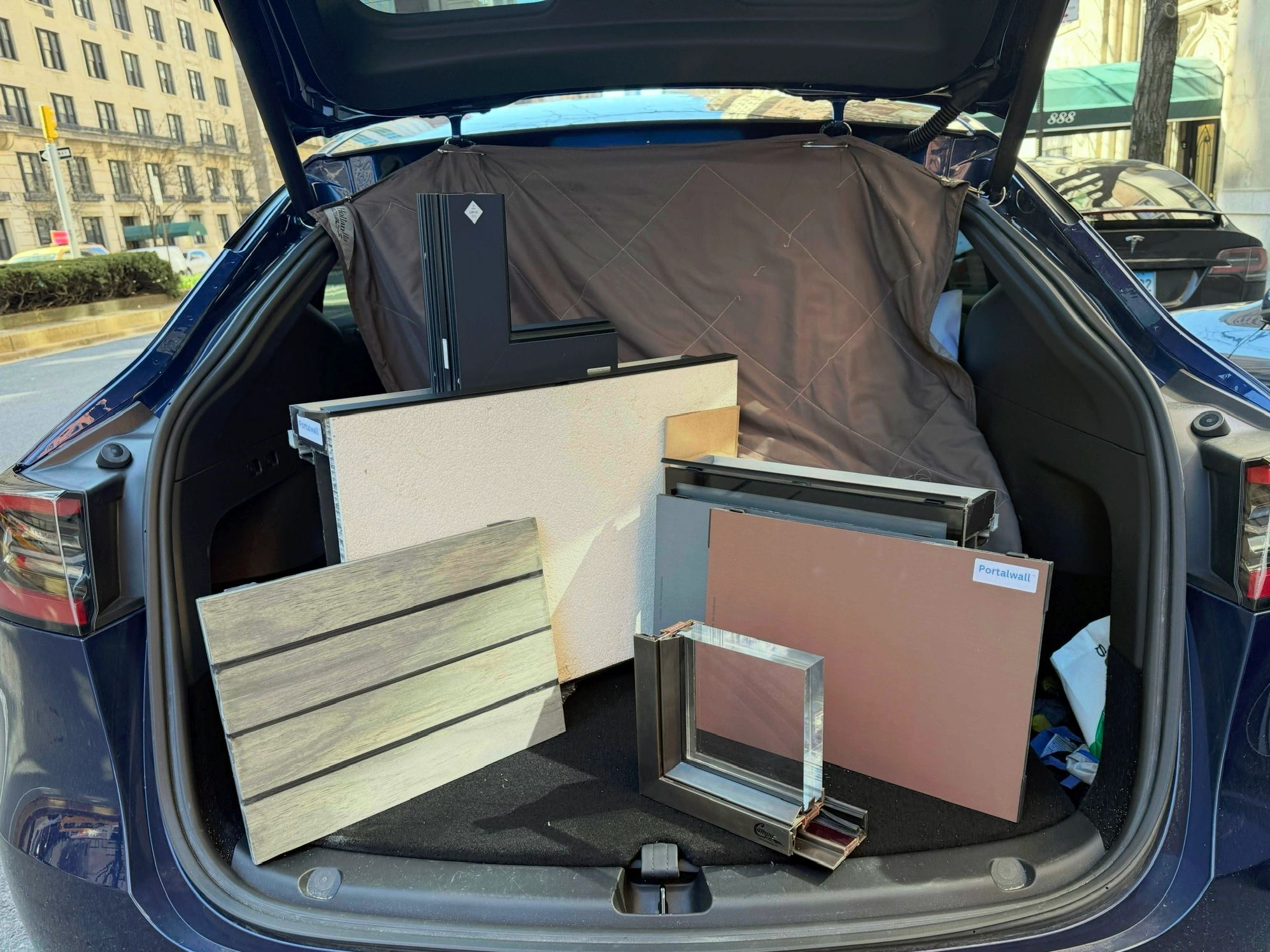

I designed the WDSA™ (Water Draining Spandrel Assembly) and the FOI™ (Fortified Opaque Infill) in parallel. Built mock-ups for a lab test. Built dozens of samples. Built one full project with it. Then procurement restrictions rubbed me the wrong way — the kind of friction that tells you the design isn't finished yet, even when it's already working. So I went back to the drawing board. Stretched it. Trimmed it. Deleted parts that didn't earn their place. Turned it around in my head more times than I can count. Then I stretched it one last time, trimmed it down again — and what came out the other side wasn't a variation on the WDSA™. It was the SEA™: one design philosophy that does it all.

One Assembly. Enables 9 Jobs. Zero Compromises.

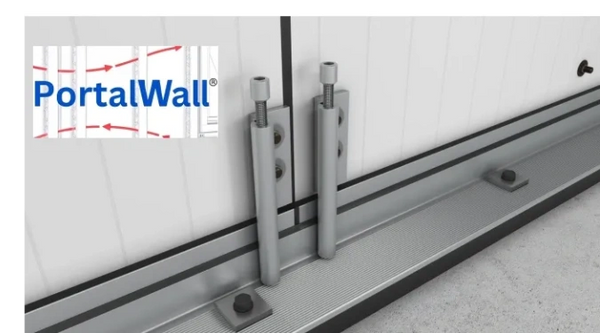

The SEA™ (Spanning Enabling Assembly) isn’t a connector. It’s the part that makes the entire PortalWall® system work.

It carries exterior fascia, thermal modules & spanning diaphragm. Three distinct systems, one assembly. Conventional vertical framing eliminated.
It collects & drains water.
It houses. Cradles the thermal modules that regulate the wall’s performance.
It cradles. Seats and secures the FORTIFIED OPAQUE INfill™ (FOI™) in place.
It fastens. Ties the entire assembly back to the building structure.
It stops fire and smoke. With no vertical spanning from floor to floor, the wall separates each level at the slab line. Fire spreads heat, and heat causes combustion, so fire and smoke stay more segregated.
It feeds the DelugeWall™. The SEA™ is the water source for the DelugeWall™, which wets the enclosure surfaces and is designed to keep them from combusting.
It compartmentalizes. True thermal decoupling. No thermal flanking. Unlike state-of-the-art curtain wall systems, the SEA™ keeps each zone contained. This is the Decoupled-CW™, not a description but a category.
It activates the Within-Wall™ Cavity. New feature, patent pending. It unlocks global deployment because everything is centered on a single assembly.

Protected. Patents Granted & Pending

Nothing you would ever think to VE out of a design.

A lasting legacy is being built. Stay tuned.

PortalWall® Within-Wall™ Cavity

Within-Wall™ Cavity - Core Performance Indicators

Active Thermal Buffer: Warming the cavity to near-room temperature, reduces the cold thermal sink that exists behind traditional interior wall partitions.

WVA™ (Water Vapor Aloft™): Prioritizes occupant health and indoor air quality by maintaining vapor balance within the occupied living space—where people live and breathe—rather than allowing it to migrate into and become trapped within the cold-side wall assembly.

LEA™ (Latent Energy Aloft™): Enhances building envelope efficiency by leveraging the latent heat capacity of ambient indoor humidity. By maintaining vapor aloft within the conditioned envelope, the system utilizes latent energy to act as an insulating thermal blanket, stabilizing indoor microclimates and reducing overall HVAC energy demand.

Water Vapor Aloft™ (WVA™):

Signals That Your Wall Works

People spend nearly 87% of their lives indoors, making the building enclosure critical to health, comfort, and energy efficiency.

The Signal

Water Vapor Aloft™ (WVA™) shows the wall assembly is performing correctly:

Airtight, continuous enclosure
No cold spots, thermal bridges, or hidden condensation
Optimal humidity (40–60% RH) preserved without risk
Reduced mold and sick building syndrome

PortalWall® Difference

Patent-protected and unique, WVA™ proves that design and physics work together to maintain comfort, efficiency, and well-being in the occupied space.

Full Details: See the complete [blog article] for the science behind WVA™.

PortalWall® — Architecture as the First Fuel™

PortalWall® embodies energy in renewal, turning the IEA’s principle of efficiency as the “first fuel” into architecture itself.

By focusing on the opaque, non-vision zones of the façade, PortalWall® ensures performance that cannot be disrupted by occupant behavior — no open windows, no fragile settings, no variables to fail.

Signals:

MC²™ — delivers cost efficiency, scalability, and simple deployment.
WVA™ — proves the wall assembly maintains comfort, optimal humidity, and health.

The Result: A coherent, reproducible system that performs across climates and building types — extreme efficiency, no moving parts, just measurable performance. It simply saves the energy you bargained for.

Together, these principles define a new façade logic: conserving before consuming, allowing air, energy, and wellness to move freely within every structure.

IEA chief: Energy efficiency is the world's 'first fuel' | World Economic Forum

MC²™

Signals Economy of Build

and Scalability

MC²™ is PortalWall®’s guiding principle: two major components, one shared logic, designed to deliver more performance for less cost.

Core Components:

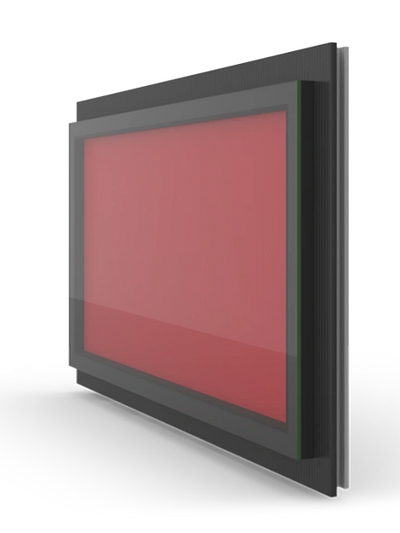

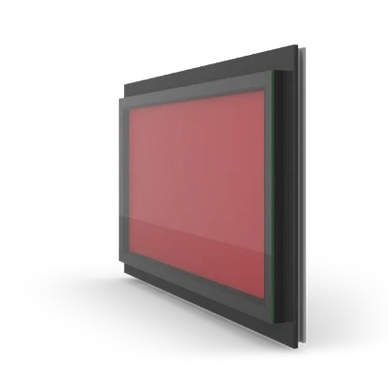

Fortified Opaque Infill™ (FOI™): Fascia + Insulated Panel
Water-Draining Spandrel Assembly (WDSA™): Spandrel Beam + Draining Carrier

By uniting precision curtain walling with insulated-panel efficiency, MC²™ creates a single, aligned system that is:

Structurally sound
Thermally efficient
Easy to procure and assemble
Globally scalable

The Signal: High performance at lower cost, proving that affordability is the true measure of a better wall.

Full Details: See the [blog article] for complete explanation of MC²™, FOI™, and WDSA™.

July 25, 2025 – THERM Analysis Summary

WVA™ communicates wellness and efficiency. Not theory, but a measurable signal: it proves the enclosure works in harmony with nature — preserving water vapor in the breathing zone where health and comfort belong.

A full thermal analysis conducted with LBNL’s industry-standard THERM software confirmed that the PortalWall® assembly exhibits zero condensation risk under design conditions.

Even at outdoor temperatures as low as 0°F, interior surface temperatures remain well above the dew point — ensuring dry, mold-resistant performance.

This superior result is driven by the system’s underlying thermal logic:

Flat-sheet diaphragm — replaces conventional vertical framing, absorbing and distributing energy uniformly.
No vertical framing members — eliminating weak points typical of conventional façades.
Continuous Outsulate™ capability — the flat diaphragm creates a robust plane for uninterrupted exterior insulation.
Integrated heat sink and insulation layers — strategically placed to balance energy and moisture.

The result: a high-performance enclosure that manages energy and moisture with exceptional reliability — and provides visible proof that wellness and efficiency can coexist in one wall system.
